150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh

150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh
150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh 150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh 150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh

Large Image :  150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: GG260
Payment & Shipping Terms:
Minimum Order Quantity: 10,000/m^2
Packaging Details: Rolls
Delivery Time: 45 days
Payment Terms: T/T, LC
Supply Ability: 5,000,000m^2/Month
Material: PP
Detailed Product Description
Application: Retaining Wall Color: Black
Feature: Environmentally Friendly, High Intensity Material: PP
Product Name: Uniaxial Geogrid Style: Grille Mesh
Tensile Strength: 150Mpa Type: Linear Polymer
High Light:

triaxial geogrid

,

geogrid fabric

150Mpa PP Black Uniaxial Geogrid High Intensity With Grille Mesh


Description:

The unidirectional-elongation geogrid is a uniform-holed mesh extruded from macromolecular polymer and subjected to elongation. This process enables the macromolecules to be in a directional and linear state, and assumes an elliptical integral structure with even distribution of macromolecules and high-strength nodes. This structure tends to have a considerable tensile strength and elongation modulus (elongation at 2% to 5%) that exceeds international standard. This provides soil with an ideal interlocking system for load capacity and dispersion on the soil. The product has a tensile strength of over 150Mpa, hence is suitable for all types of soil and is now widely used as reinforcement material.


Specifications:


Geogrids Uniaxial GG260 Technical Specification
Property Test Method Unit Index
The tensile yield strength   KN/M ≥260
Yield elongation   % ≤10
2% elongation at tensile force   KN/M ≥78
5% elongation at tensile force   KN/M ≥157
Creep limit strength elongation   % ≥86
Packaging   Details
Roll Dimensions(W×L)   According to customer requirement
Square Meters Per Roll
Estimated Roll Weight




Features

1. Linear polymer into the state and the formation of uniform, high intensity nodes oblong mesh structure. This structure has a very high tensile strength and rigidity to the soil provides the ideal force's commitment to the proliferation of chains. With good water conductivity, the nonwoven geotextile forms a water discharge channel in the soil and discharges redundant liquid and vapor in the soil.
2. unidirectional-elongation plastic geogrid advantage is sustained in the long term deformation under load (creep) the tendency of small, creep strength is much better than other materials geogrid, for improving the project life has an important role. It can effectively diffuse, transmit of allocate stress to prevent external force from damaging the soil.
3. Grille mesh and soil interlock between the bite and the role of stress constitutes an efficient transmission mechanism, so that the local load quickly and efficiently spread to a large area of ​​soil to go in order to achieve lower local failure stress, improve project life. There is rare chance of mesh orifices being blocked because the mesh made up of flexible fiber is adaptable and moveable.




Applications:

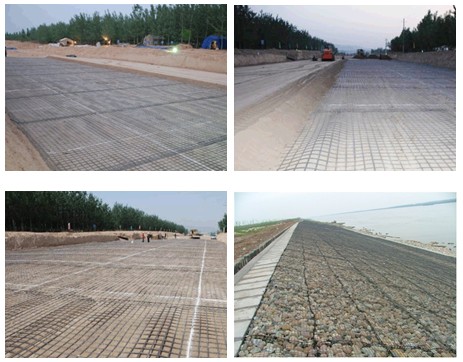

Road bed reinforcement, it can effectively allocate and disperse load, improves the stability and load capacity of road and extend the useful life of road;
It can withstand greater alternating load;
It can prevent road bed deformation and breakage caused by loss of road bed material;
By increasing the self-road bearing capacity of backfill behind the retaining wall, it can reduce the load on retaining wall, save cost, extend it’s useful life and lower maintenance cost;
Combined with slope maintenance using hot concrete, it can not only save cost by 30% to 50%, but also shorten construction duration by half time;
By adding geogrid in the road bed and base course, it can reduce curve settlement, less traffic tracks, delay the occurrence of cracks by 3 to 9 times the period and reduce the thickness of structural course by 36%;
It is suitable for all types of soil and all material is available locally;
It is convenient in application and may significantly reduce construction cost.
