Staple Fiber Needle punched Geotextile Drainage Fabric 800G For Reinforcement Base

China Staple Fiber Needle punched Geotextile Drainage Fabric 800G For Reinforcement Base supplier

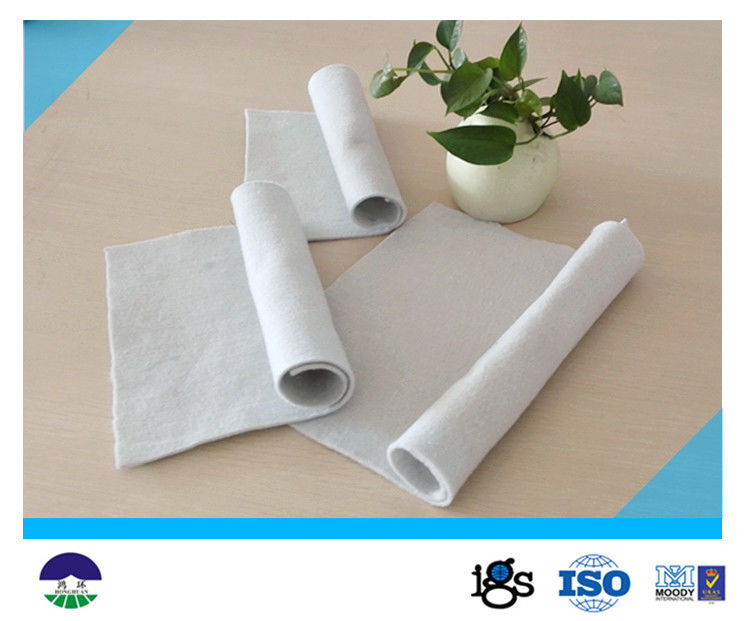

Large Image :  Staple Fiber Needle punched Geotextile Drainage Fabric 800G For Reinforcement Base

Product Details:

Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: SNG800

Payment & Shipping Terms:

Minimum Order Quantity: 10,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 30 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Material: Polyester/Polypropylene Color: White
Type: Short Fiber Needle-punched Non-woven Geotextile Port: Ningbo
Unite Mass: 800gsm Packing: Film Or As Your Request

800G Staple Fiber Needle-punched non-woven Geotextiles

Description:

Short Fiber Needle-punched non-woven Geotextiles SNG® are made from PET/PP fibres that are tangled together by a needle-punching process. The fibres that achieve their strength by interlocking. Needle-punched non-woven Geotextiles have excellent water flow rates and are used for filtration of soil fines for drainage applications including trench drains, as a wrapping for perforated pipe, for erosion protection, and combined with three-dimensional structures to create prefabricated drains.



Quick detail:

Material: PET/PP
Weight: 800g/m²
Machine width: ≤6m
Tensile strength: 25.0kN/m

SNG800® Specification Date Sheet:

SNG800® Technical Specification

Property

Test Method

Metric Value

English Value

Mass Per Unit Area

ASTM D 5261

800 g/m²

23.6 oz/yd²

Thickness

ASTM D 5199

5.0 mm465 US Sieve

Tensile strength

ASTM D 4595

25.0 KN/m

5614 lbs

Elongation

ASTM D 4595

50%

50%

Apparent Opening Size

ASTM D 4751

0.10 mm

9 US Sieve

Permittivity

ASTM D 4491

NA

NA

Water Flow Rate

ASTM D 4491

2500 L/min/m2

62 g/min/sf

Trapezoidal Tear Strength

ASTM D 4533

0.60 KN

135 lbs

CBR Puncture Strength

ASTM D 6241

4.00 KN

898 lbs

UV Resistance
(% retained after 500 hours)

ASTM D 4355

70%

70%

ROLL DIMENSIONS

Roll Width

4 M

13.2 ft

Roll Length

100 M

382.9 ft

 Roll Weight

320 KGS

705 lbs

NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
·The material used to produce this item is virgin polyester.


Features:

Color: White or custom-made
Temperature Range: -60°C ~ +170°C
Permeability: Excellent uniformity with high permeability and low pore size for soil filtration.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient.

Applications:

While the non woven fabric can be used in almost any stabilization,separation or cushioning application, they are most commonly used in areas that also require filtration. The non woven design of the material provides a higher rate of flow through,making it easier for water to pass through the material.Some common uses of the material includes the following:

  • Water conservancy priject and hydropower project
  • Road paving, railway
  • Airport and port
  • River bank protection and tunnel
  • Environmental applications
