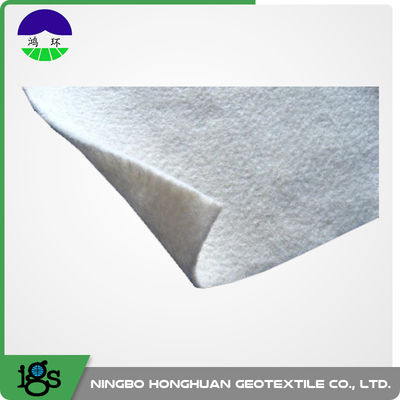

100% Polyester Continuous Filament Nonwoven Geotextile Filter Fabric FNG80

100% Polyester Continuous Filament Nonwoven Geotextile Filter Fabric FNG80
100% Polyester Continuous Filament Nonwoven Geotextile Filter Fabric FNG80 100% Polyester Continuous Filament Nonwoven Geotextile Filter Fabric FNG80

Large Image :  100% Polyester Continuous Filament Nonwoven Geotextile Filter Fabric FNG80

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: FNG80
Payment & Shipping Terms:
Minimum Order Quantity: 50,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 30 days
Detailed Product Description
Type: Filament Nonwoven Geotextile Port: Ningbo/Shanghai
Packing: Film Or As Per Customer's Request Model: FNG80
High Light:

geotextile drainage fabric

,

non woven geotextile filter fabric

White And Grey 100%POLYESTER CONTINUOUS FILAMENT NONWOVEN GEOTEXTILE



Description:
Nonwoven Geotextiles FNG® are made from continue PET fibers that are tangled together by a needle-punching process. The fibers that achieve their strength by interlocking. They have excellent water flow rates and are used for filtration of soil fines for drainage applications including trench drains, as a wrapping for perforated pipe, for erosion protection, and combined with three-dimensional structures to create prefabricated drains.



FNG80® Specification Date Sheet:

PROPERTIES TEST METHOD UNIT NOMINAL VALUE
Mass Per Unit Area ASTM D 5261 g/m2 800
Thickness ASTM D 5199 mm 5.5
Tensile strength ASTM D 4595 kN/m 40
Elongation ASTM D 4595 % 50
Apparent Opening Size ASTM D 4751 mm 0.15
Permittivity ASTM D 4491 sec-1 NA
Water Flow Rate ASTM D 4491 l/min/m2 2500
Trapezoidal Tear Strength ASTM D 4533 kN 1.10
CBR Ejection Force ASTM D 6241 kN 7.00
UV Resistance (% retained after 500 hours) ASTM D 4355 % 70
ROLL DIMENSIONS
Roll Width     4
Roll Length     50
Roll Weight     160



·NOTES:

·The values given are Minimum Average Values except UV resistance. UV is a typical value.



Features:

Color: White or custom-made
Temperature Range: -60°C ~ +170°C
Permeability: it has high water flow rates and small openings.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient.

Applications:

While the non woven fabric can be used in almost any stabilization,separation or cushioning application, they are most commonly used in areas that also require filtration. The non woven design of the material provides a higher rate of flow through,making it easier for water to pass through the material.Some common uses of the material includes the following:

  • Road stabilization applications
  • Railway work
  • Landfill lining
  • Filtration under rip rap and rocks
  • Environmental applications
