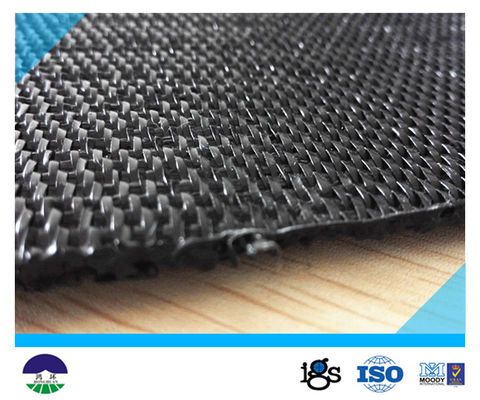

Monofilament Woven Geotextile For Filtration

Monofilament Woven Geotextile For Filtration
Monofilament Woven Geotextile For Filtration Monofilament Woven Geotextile For Filtration Monofilament Woven Geotextile For Filtration

Large Image :  Monofilament Woven Geotextile For Filtration

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: MWG370
Payment & Shipping Terms:
Minimum Order Quantity: 10,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 30 days
Payment Terms: T/T, L/C
Detailed Product Description
Material: Polypropylene Color: Black
Type: Monofilament Woven Geotextile Tensile Strength: 52.5-47.3kN/m
Packing: Film/Woven Bag Port: Ningbo/Shanghai
Highlight:

geotextile woven fabric

,

tensile strength of fabric

Monofilament Woven Geotextile For Filtration


Description:

Mono-filament Woven Geotextile MWG®, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.​


Quick detail:

Material: PP
Machine width: ≤3.8m
Tensile strength: Warp@52.5kN/m, Weft@47.3kN/m

MWG370® Specification Date Sheet:

MWG370® Technical Specification

Property

Test Method

Metric Value

English Value

Tensile strength MD

ASTM D 4595

52.5 KN/m

11790 lbs

Tensile strength CD

ASTM D 4595

47.3 KN/m

10622 lbs

Elongation

ASTM D 4595

25%

25%

Tensile Strength at







2%, MDASTM D 459511 KN/m2470 lbs
2%, CDASTM D 459512.3 KN/m2762 lbs
5%, MDASTM D 459521.9 KN/m4918 lbs

5%, CD

ASTM D 4595

22.8 KN/m

5120 lbs

Factory Seam StrengthASTM D 488425.1 KN/m5637 lbs

Apparent Opening Size

ASTM D 4751

0.43 mm

40 US Sieve

Permittivity

ASTM D 4491

0.9 sec-2

0.9 sec-2

Water Flow Rate

ASTM D 4491

1630 L/min/m2

40 g/min/sf

UV Resistance
(% retained after 500 hours)

ASTM D 4355

80%

80%

NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·The material used to produce this item is virgin polypropylene.


Features:

Color: Black
Temperature Range: 0°C ~ +150°C

Permeability: Could control the sieve size to retain certain permeability.
Durability: Steady property, not easy to resolved,air slaked and can keep the original property long term.
Water permeability: PP woven fabrics can effectively control the pore structure, in order to achieve a certain permeability

Applications:

Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.

Dewatering Geo-tube
Dewatering Geo-tube is high efficiency filtration products designed to effectively remove silt, sand, sediment and other unwanted materials from your discharge or storm water runoff.
Dewatering geo-tube has been frequently used during dredging, construction work, lagoon
sludge removal, and other sediment removal processes.
