Ningbo Honghuan Geotextile Co.,LTD
Home ProductsGeotextile Filter Fabric

PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile

China Ningbo Honghuan Geotextile Co.,LTD certification
China Ningbo Honghuan Geotextile Co.,LTD certification
Ivan, danna and Amy , thank you guys for your good service. The woven geotextile seems very good ,thank you!

—— Joy

This was my first time to do business with Chinese people and every thing gone very well ,thank you all guys. quality goods and wonderful service.

—— Piotr

I'm Online Chat Now

PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile

PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile
PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile

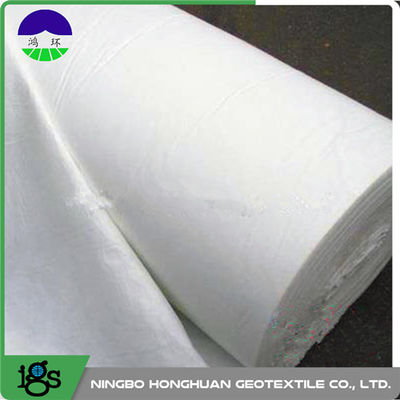

Large Image :  PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: NGT450
Payment & Shipping Terms:
Minimum Order Quantity: 10,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 30 days
Payment Terms: T/T, LC
Supply Ability: 8,000,000m^2/Month
Material: PP, PE or PET
Detailed Product Description
Application: Sea Embankment Color: White
Feature: Wear Resistance Function: Drainage
Geotextile Type: Nonwoven Geotextile Material: PET
Product Name: Geotextile Filter Fabric Weight: 450g
High Light:

Woven Geotextile Fabric

,

Geotextile Drainage Fabric



PET Geotextile Filter Fabric / Needle Punched Non Woven Geotextile

Description:



The extra-breadth and high-strength woven geotextile is widely used in soft soil foundation improvement,soil and gravel course separation,water discharge and seepage prevention to effectively prevent surfacing of soil and sinking of bed course. Such geotextile has incomparable advantages in reinforcement over the geogrid.



Quick detail:



Weight: 450g/m^2

Width: ≤6m

Tensile strength: ≥14kn/m





Features:

1. With good porosity and water permeability, the geotextile allows the passage of water and effectively retains soil and gravel.

2. With good water conductivity, the nonwoven geotextile forms a water discharge channel in the soil and discharges redundant liquid and vapor in the soil.

3. By enhancing the tensile strength and anti-deformation performance, the geotextile increase the structural stability of buildings and improves the soil condition.

4. It can effectively diffuse, transmit of allocate stress to prevent external force from damaging the soil.

5. It can avoid mixing of upper and lower gravel courses or the mixing of soil and concrete.

6. There is rare chance of mesh orifices being blocked because the mesh made up of flexible fibre is adaptabe and moveable.

7.  High water permeability. It maintains good water permeability under the stress from soil and water.

8. Corrosion resistance. Made of chemical fibres like polypropylene and polyethylene, it is resistant to acid, corrosion,worm and oxidization.

9. Application is convenient due to light weight and convenient handing.

10. Competitive advantage. High permeability, Corrosion resistance, Convenient application, Good water conductivity, Low cost





Specifications:



Nonwoven Geotextile NGT450 Technical Specification

Property

Test Method

Unit

Index

Weight

ASTM D5261

g/m²

450

Weight tolerance





+/-7

Thickness



mm

3.3

Tensile strength



kn/m

14

Elongation



%≥

25

Trapezoid Tear Strength

ASTM D4533

kn

0.38

CBR Puncture Resistance

ASTM D6241

kn

2.4

Equivalent bore diameter



mm

0.07~0.2

Vertical filtration coefficient

ASTM D4491

cm/s

10-1~10-4

Packaging

Details

Roll Dimensions(W×L)

According to customer requirements

Square Meters Per Roll



Estimated Roll Weight







Applications:



Hydraulic project

Sea embankment, river bank, lake dike

Tideflat reclamation works

Flexible mattress

Sand-filled geotextile bag

Anti-flood rescue work



Road construction

Soft soil improvement

Slope protetion

Road surface anti-reflection

Joint coruse

Drainage

Greenbelt



Railway project

Railway bed course reinforcement

Railway slope reinforcement

Tunnel anti-water skirting

Covert ditch for water discharge

Power plant project

Earthwork for nuclear

Power plant

Fly ash dam for coal-fired

Power plant Hydropower station



Aviation project

Runway foundation improvement

Structural course for apron

Foundation and surface

Airport road and drainage system
