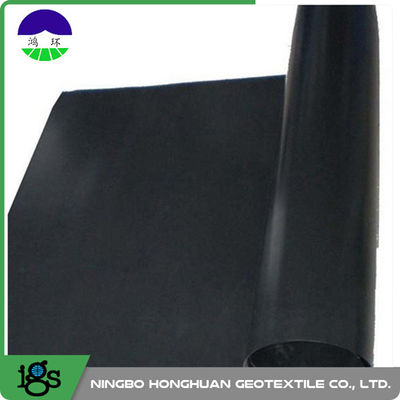

1.25mm HDPE Geomembrane Liner Ultra Tech Flexible Geomembrane For Subway

1.25mm HDPE Geomembrane Liner Ultra Tech Flexible Geomembrane For Subway
1.25mm HDPE Geomembrane Liner Ultra Tech Flexible Geomembrane For Subway

Large Image :  1.25mm HDPE Geomembrane Liner Ultra Tech Flexible Geomembrane For Subway

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: HGM125
Payment & Shipping Terms:
Minimum Order Quantity: 5,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 45 days
Detailed Product Description
Application: Hygienic Projects|subway Color: Black
Function: Anti-seepage Material: PE
Thickness: 1.25mm Type: HDOE Geomembrane
High Light:

polyethylene pond liner

,

hdpe pond liners

1.25mm HDPE Geomembrane Liner Ultra Tech Flexible Geomembrane For Subway





Description:



HDOE Geomembrane is new anti-seepage and anticorrosion material widely sued in different pro-jects where anti-seepage and anticorrosion are required.The Geomembrane uses premium HDPE virgin material and is made through a 3-layer co-extrusion process to include 97.5% HDPE ,circa 2.5% carbon black, trace antioxidant and heat stabilizing agent,anti-aging material and UV absorbent ,but free from other additives ,stuffing or expanding agent.

The virgin PE resin is designed and prepared specially for flexible anti-seepage app-lication .Field test by specialists shows the HDPE anti-seepage film meets or exceeds GRI-GM 13 standard in all performance indexes.





Specifications:

PROPERTIES TEST METHOD UNIT NOMINAL VALUE
Thickness ASTM D 5199 mm 1.25
Density ASTM D 1505 g/m³ ≥0.94
Tensile Properties
Yield Strength ASTM D 638 N/mm 16
Break Strength ASTM D 638 N/mm 25
Yield Elongation ASTM D 638 % 11
Break Elongation ASTM D 638 % 600
Tear Resistance ASTM D 1004 N 140
Puncture Resistance ASTM D 4833 N 300
Carbon Black Content ASTM D 1603 % 2.0~3.0
Water Vapour Permeability   g.cm/cm².s.pa ≤1.0×10^-13



Applications:



1. Environment protection and hygienic projects (such as domestic refuse landfill, sewage treatment, toxic material treatment plant, hazardous goods warehouse, industrial waste construction waste explosion waste)

2. Water conservancy projects (such as anti-seepage, anti-seepage and reinforcement of river bank, Lake Dike and reservoir dam; anti-seepage of ditch, vertical inner wall and slope protection)

3. Urban infrastructure (anti-seepage provision for expressway, subway and underground works, roof water tank and roof garden; lining for sewage pipe)

4. Gardening (bottom lining and slope protection for artificial lake, pond and golf course)

5. Petrochemical (anti-seepage provision for oil tanks in chemical plant, oil refinery and gas station; lining material for chemical reaction tank and precipitation tank)

6. Mining (anti-seepage lining for sorting tank, immersion tank, ash yard, dissolving tank, precipitation tank, stack yard and tailings)

7. Transportation facility (reinforcement of road foundation and anti-seepage provision for culvert)

8. Agriculture (anti-seepage provision for reservoir, potable water tank, pond and irrigation system)

9. Aquaculture (lining, anti-seepage, anti-corrosion, anti-leak, reinforcement, and seepage water collection for fish pond, shrimp pond and other facility)
