Product Details:
Payment & Shipping Terms:
|
| Application: | Railway Foundation, Dike Slope | Color: | Black |
|---|---|---|---|
| Feature: | Durable, High Tensile Strength | Function: | Lower Elongation |
| Material: | PP | Product Name: | Fiberglass Geogrid |
| Tensile Strength: | 80KNM | Type: | Glass Fiber Geogrid |
| Highlight: | triaxial geogrid,geogrid fabric |
||

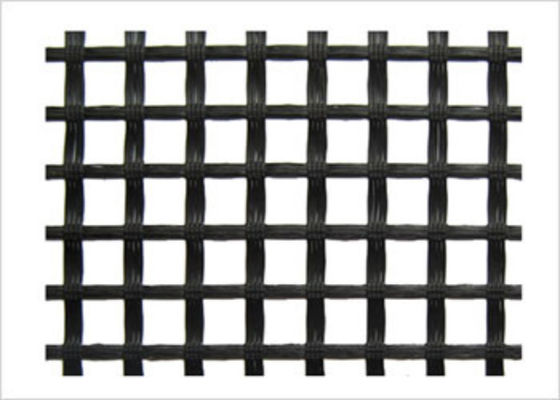

Durable Fiberglass Geogrid for Railway Foundation / Dike Slope
Quick detail:
Wide Width Tensile Strength
MD: ≥80kn/m
CMD: ≥80kn/m
Description:
The glass fiber geogrid is and excellent composite material used for road bed reinforcement and soft soil foundation improvement. It has become an indispensable material in treatment of reflection cracks on asphalt road surface. The products are semi-rigid mesh base made from high-strength alkaline-free glass fiber through international advanced process and subjected to surface coating. It has a high tensile strength and a lower elongation both vertically and horizontally. Moreover, it has good resistance to high and low temperature, aging and corrosion. It is widely used in Asphalt wall, railway foundation, dike slope, runway and sand harnessing.
Specifications:
|
Glass Fiber Geogrid GGF80 Technical Specification |
|||
|
Property |
Test Method |
Unit |
Index |
|
Wide Width Tensile Strength |
|
|
|
|
MD |
|
KN/M |
≥80 |
|
CMD |
|
KN/M |
≥80 |
|
Elongation At Break |
|
|
≥3 |
|
Grid |
|
MM |
25.4×25.4 |
|
Width |
|
M |
1~6 |
|
Packaging |
|
Details |
|
|
Roll Dimensions(W×L) |
|
According to customer requirements |
|
|
Square Meters Per Roll |
|
|
|
|
Estimated Roll Weight |
|
|
|
Applications:
It is widely used in Asphalt wall, railway foundation, dike slope, runway and sand harnessing.
