Product Details:
Payment & Shipping Terms:
|
| Material: | Polypropylene | Color: | Black |
|---|---|---|---|
| Type: | Woven Geotextile | Port: | Ningbo |
| Unit Mass: | 448gsm | Packing: | Plastic Film |
| High Light: | Woven Monofilament Geotextile,tensile strength of fabric |
||
Description:

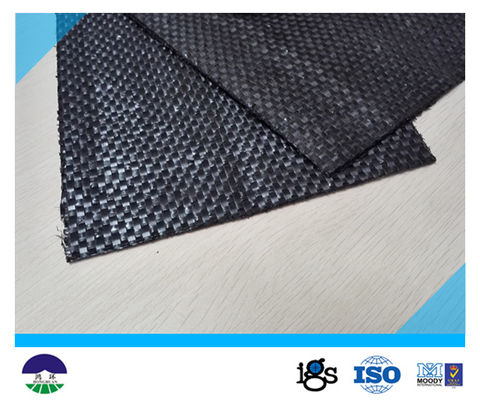

A woven geotextiles is an economical solution for any civil engineering applications. It separates, stabilizes, and reinforces soils and allos allows for filtration. Woven geotextiles are manufactured by extruding polypropylene film and then slitting the film into individual yarns which are then woven to form the geotextiles.
Quick detail:
Material: PP
Weight: 448g/m²
Machine width: ≤8m
Common Width: 0.95m(3.12") 1.29m(4.32') 1.91m(6.25') 3.81m(12.5') 5.33m(17.5')
Tensile strength: Warp@92kN/m, Weft@68kN/m
SWG448® Specification Date Sheet:
|
Woven Geotextile SWG448 Technical Specification |
|||
|
Property |
Test Method |
Metric Value |
English Value |
|
Mass Per Unit Area |
ASTM D 5261 |
448 g/m² |
13.2 oz/yd² |
|
Tensile strength MD |
ASTM D 4595 |
92.9 KN/m |
20862 lbs |
| Tensile strength CD | ASTM D 4595 | 68.9 KN/m | 15473 lbs |
|
Elongation |
ASTM D 4595 |
15% |
15% |
|
Apparent Opening Size |
ASTM D 4751 |
0.4 mm |
37 US Sieve |
|
Permittivity |
ASTM D 4491 |
NA |
NA |
|
Water Flow Rate |
ASTM D 4491 |
120 L/min/m2 |
3 g/min/sf |
|
Trapezoidal Tear Strength |
ASTM D 4533 |
0.7 KN |
162 lbs |
|
CBR Ejection Force |
ASTM D 6241 |
7.5 KN |
1684 lbs |
|
UV Resistance (% retained after 500 hours) |
ASTM D 4355 |
70% |
70% |
|
ROLL DIMENSIONS |
|||
|
Roll Width |
3.8 M |
13.2 ft |
|
|
Roll Length |
100 M |
328.9 ft |
|
|
Roll Weight |
170 KGS |
375 lbs |
|
NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
Features:
Color: Black / Customized
Temperature Range: 0°C ~ +150°C
Durability: The characteristics of synthetic fiber is not easy to be denatured .It can keep its original features.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient .
Applications:
Separation
Acts as a separator between two layers of soil in road construction and rail works. Our fabric is having strength, high puncture resistance and appropriate elongation features required for road and rail works.
Reinforcement
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
