Product Details:
Payment & Shipping Terms:
|
| Material: | Polypropylene | Color: | Black |
|---|---|---|---|
| Type: | Woven Geotextile | Port: | Ningbo |
| Unite Mass: | 136gsm | Packing: | Plastic Film |
| Highlight: | geotextile woven fabric,Woven Monofilament Geotextile |
||

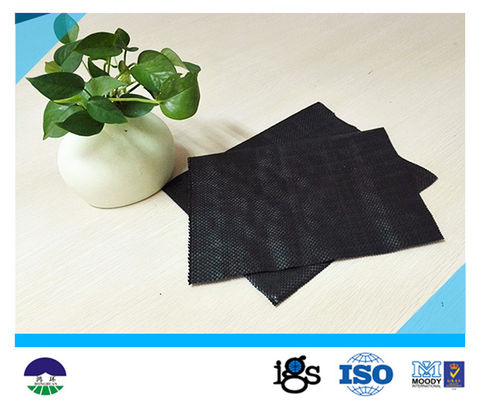

PP 136gsm 200 lbs Tensile Strength Woven Stabilization Fabric
Description:
A woven geotextiles is an economical solution for any civil engineering applications. It separates, stabilizes, and reinforces soils and allos allows for filtration. Woven geotextiles are manufactured by extruding polypropylene film and then slitting the film into individual yarns which are then woven to form the geotextiles.
Quick detail:
Material: PP
Weight: 136g/m²
Machine width: ≤8m
Common Width: 3.81m(12.5') 4.56m(15') 5.33m(17.5')
Grab Tensile : 200lbs(900N)
SWG136® Specification Date Sheet:
|
ROPERTY |
ASTM TEST METHOD |
Minimum Average |
Minimum Average |
|
Weight (Typical) |
ASTM D-5261 |
4.0 oz/yd2 |
136 g/m2 |
|
Grab Tensile |
ASTM D-4632 |
200 lbs |
900 N |
|
Grab Elongation |
ASTM D-4632 |
15% |
15% |
|
Trapezoid Tear |
ASTM D-4533 |
75 lbs |
333 N |
|
CBR Puncture Resistance |
ASTM D-6241 |
700 lbs |
3120 N |
|
Permittivity |
ASTM D-4491 |
0.05 sec-1 |
0.05 sec-1 |
|
Water Flow Rate |
ASTM D-4491 |
5 gal/min/ft2 |
203 L/min/m2 |
|
AOS |
ASTM D-4451 |
40 US Std.Sleve |
0.430 mm |
|
UV Resistance |
ASTM D-4355 |
70% @ 500 hrs |
70% @ 500 hrs |
|
|
|
|
|
|
ROLL DIMENSIONS |
|
||
|
Roll Width |
3.81m(12.5’) |
4.56m(15') |
5.32m(17.5') |
|
Roll Length |
132m(432’) |
109m(360') |
94m(309') |
|
Roll Weight |
80kgs(176lbs) |
80kgs(176lbs) |
80kgs(176lbs) |
NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
Features:
Color: Black / Customized
Temperature Range: 0°C ~ +150°C
Durability: The characteristics of synthetic fiber is not easy to be denatured .It can keep its original features.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient .
Applications:
Separation
Acts as a separator between two layers of soil in road construction and rail works. Our fabric is having strength, high puncture resistance and appropriate elongation features required for road and rail works.
Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
