PP Woven Geotextile Fabric for Separation Filtration Reinforcement

Large Image : PP Woven Geotextile Fabric for Separation Filtration Reinforcement

Product Details:

Place of Origin:	China
Brand Name:	Honghuan
Model Number:	MWG

Payment & Shipping Terms:

Minimum Order Quantity:	100

Contact Now

Detailed Product Description

Material:	PP	Length:	50-100m/roll
Weight:	100-800g/m2	Width:	2-6m
Tensile Strength MD:	38.5-105.1 KN/m	Tensile Strength CD:	35.9-96.3 KN/m
Elongation MD:	25%	Elongation CD:	25%
Tensile Strength 2% MD:	7-21 KN/m	Tensile Strength 2% CD:	8.6-25 KN/m
Tensile Strength 5% MD:	17.7-52.5 KN/m	Tensile Strength 5% CD:	19.8-53 KN/m
Factory Seam Strength:	18.4-52.5 KN/m	Apparent Opening Size:	0.43-0.6 Mm
Permittivity:	0.04-0.9 Sec-1
Highlight:	PP woven geotextile separation fabric , woven geotextile filtration material , geotextile fabric for reinforcement

High Quality Durable Short Fiber Geotextile

Product Overview

Black PP waterproof geotextile filter fabric designed for separation, filtration, drainage, reinforcement, and protection applications.

Key Features

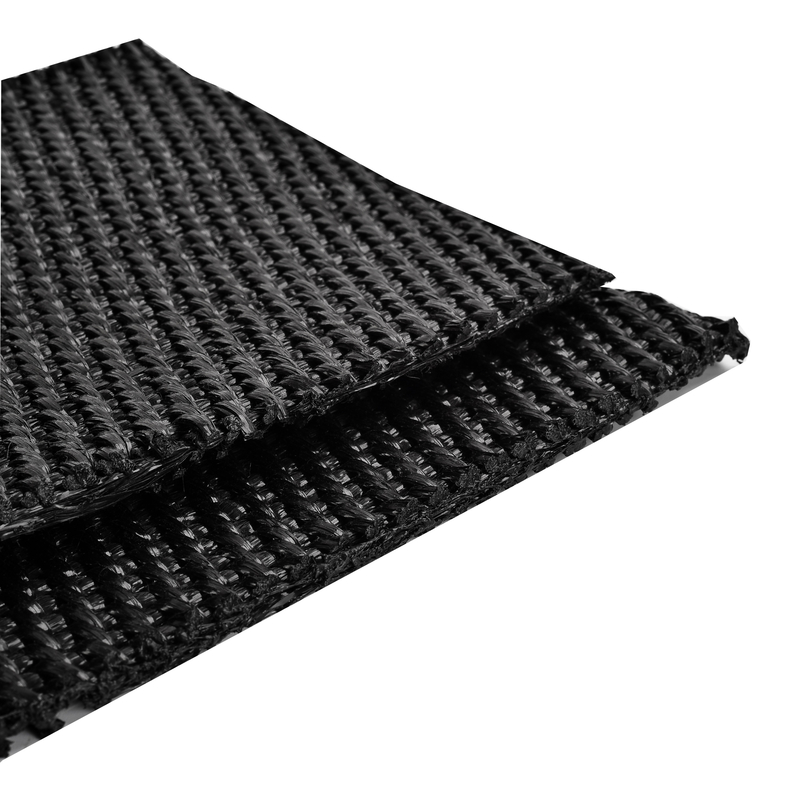

Woven geotextile construction for strength and durability
Made from high-tenacity polypropylene yarns
Tear-resistant material
Available in various weights (100-800g/m²) and widths (2-6m)
ISO 9001 certified
Excellent UV resistance (70-80% retained after 500 hours)

Technical Specifications

PROPERTIES	TEST METHOD	UNIT	MWG270	MWG370	MWG570	MWG665	MWG770
Tensile Strength, MD	ASTM D 4595	kN/m	38.5	52.5	70	70	105.1
Tensile Strength, CD	ASTM D 4595	kN/m	35.9	47.3	70	96.3	84
Elongation, MD	ASTM D 4595	%	25	25	25	25	25
Elongation, CD	ASTM D 4595	%	25	25	25	25	25
Tensile Strength at 2%, MD	ASTM D 4595	kN/m	7	11	14	17.5	21
Tensile Strength at 2%, CD	ASTM D 4595	kN/m	8.6	12.3	19.3	25	22.8
Apparent Opening Size	ASTM D 4751	mm	0.6	0.43	0.6	0.43	0.6
Permittivity	ASTM D 4491	sec-1	0.7	0.9	0.4	0.26	0.04

*The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value. Mass per unit area has a tolerance of ±10%.

Applications

Weed block for landscaped garden beds
Permeable liners for planters (stops soil erosion)
Weed control under wooden decking
Separation of aggregate/soils under walkway blocks or bricks
Prevents paving from settling unevenly

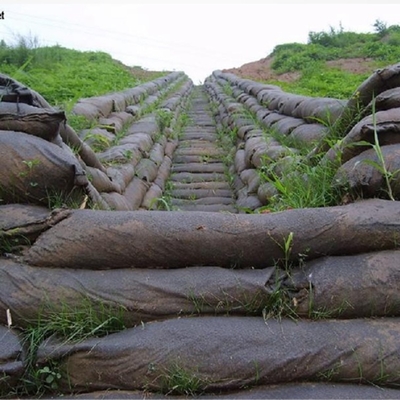

Soil erosion prevention in landscaping

Product Attributes

Attribute	Value
Material	PP (Polypropylene)
Geotextile Type	Woven Geotextiles
Length	50-100m/roll (customizable)
Weight	100-800g/m²
Width	2-6m
Certificate	ISO 9001
After-sale Service	Online technical support

Frequently Asked Questions

Which payment methods do you accept?

We accept L/C, TT, Westunion, and PayPal for your convenience.

Are you willing to provide samples?

Yes, we're glad to provide samples if we have identical or similar products in stock.

Can I get a cheaper price for large quantities?

We offer favorable discounts for large quantity orders.

Do you accept customized designs?

Yes, we welcome customized design requests.
