Woven Geotextile Fabric for Reinforcement Separation Filtration

Large Image : Woven Geotextile Fabric for Reinforcement Separation Filtration

Product Details:

Place of Origin:	China
Brand Name:	Honghuan
Model Number:	MWG&SWG

Payment & Shipping Terms:

Minimum Order Quantity:	100

Contact Now

Detailed Product Description

Material:	PP	Geotextile Type:	Woven Geotextiles
Tensile Strength MD:	38.5-105.1 KN/m	Tensile Strength CD:	35.9-96.3 KN/m
Elongation MD:	25%	Elongation CD:	25%
Tensile Strength 2% MD:	7-21 KN/m	Tensile Strength 2% CD:	8.6-25 KN/m
Tensile Strength 5% MD:	17.7-52.5 KN/m	Tensile Strength 5% CD:	19.8-53 KN/m
Factory Seam Strength:	18.4-52.5 KN/m	Apparent Opening Size:	0.43-0.6 Mm
Permittivity:	0.04-0.9 Sec-1	Water Flow Rate:	611-2037 L/min/m2
UV Resistance:	70-80% Retained After 500 Hours
Highlight:	woven geotextile fabric for reinforcement , woven geotextile separation fabric , woven geotextile filtration fabric

High Tensile Geotextile Planting Grow Bags

Product Attributes

Attribute	Value
Warranty	NONE
After-sale Service	Online technical support
Geotextile Type	Woven Geotextiles
Application	Separation, filtration, drainage, reinforcement, protection
Material	PP (Polypropylene)
Features	Tear-Resistant
Function	Reinforcement, Separation, Filtration
Usage	Ecological Slope Protection System

Product Description

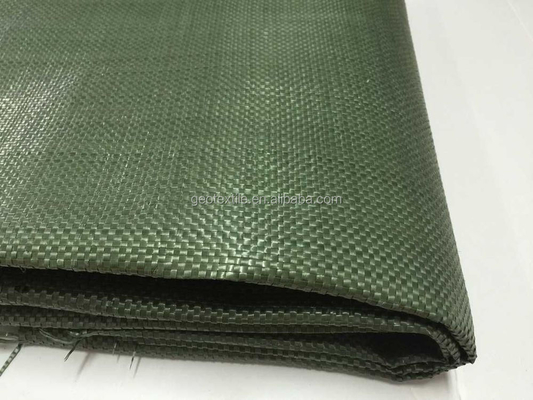

MWG® Mono-filament Woven Geotextile incorporates round strands that are extruded from high-tenacity polypropylene yarns, woven into a stable network. This construction is ideal for applications requiring both strength and filtration, such as shoreline rip rap applications.

Product Specifications

PROPERTIES	TEST METHOD	UNIT	MWG270	MWG370	MWG570	MWG665	MWG770
Tensile Strength, MD	ASTM D 4595	kN/m	38.5	52.5	70	70	105.1
Tensile Strength, CD	ASTM D 4595	kN/m	35.9	47.3	70	96.3	84
Elongation, MD	ASTM D 4595	%	25	25	25	25	25
Elongation, CD	ASTM D 4595	%	25	25	25	25	25
Tensile Strength at 2%, MD	ASTM D 4595	kN/m	7	11	14	17.5	21
Tensile Strength at 2%, CD	ASTM D 4595	kN/m	8.6	12.3	19.3	25	22.8
UV Resistance (% retained after 500 hours)	ASTM D 4355	%	80	80	80	70	80

*The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value. *Mass per unit area has a tolerance of ±10%.

This information is provided for reference purposes only and is not intended as a warranty or guarantee. Specifications subject to change without notice.

Applications

Weed block for landscaped garden beds
Permeable liners for planters (prevents soil erosion)
Weed control under wooden decking
Separation layer for aggregate/soils under walkway blocks or bricks
Prevents paving from settling unevenly
Landscape fabric for soil erosion control
