Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric

Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric
Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric

Large Image :  Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric

Product Details:
Place of Origin: China
Brand Name: HongHuan
Model Number: SWG137
Payment & Shipping Terms:
Minimum Order Quantity: 10,000sqm
Packaging Details: PP or PVC Fabric Rolls
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 4,000,000sqm/Month
Detailed Product Description
Material: Recycled PP Or Virgin PP Roll Size: 0.95m(3.12") 1.29m(4.32') 1.91m(6.25') 3.81m(12.5') 5.33m(17.5')
High Light:

geotextile woven fabric

,

tensile strength of fabric

Circle Loom Silt Film Woven Geotextile 137g Various Roll Size Made of Recycled Polypropylene


Quick detail:

Weight: 137g/m^2
Machine width: ≤8m
Common Width: 0.95m(3.12") 1.29m(4.32') 1.91m(6.25') 3.81m(12.5') 5.33m(17.5')

Tensile strength: Warp@26kN/m, Weft@24kN/m

SWG137® Specification Date Sheet:

Woven Geotextile SWG137 Technical Specification
PropertyTest MethodMetric ValueEnglish Value
Mass Per Unit AreaASTM D 5261137 g/m²4.0 oz/yd²
Tensile strength MDASTM D 459526 KN/m5839 lbs
Tensile strength CDASTM D 459524 KN/m5390 lbs
ElongationASTM D 459515%15%
Apparent Opening SizeASTM D 47510.4 mm37 US Sieve
PermittivityASTM D 4491NANA
Water Flow RateASTM D 4491120 L/min/m23 g/min/sf
Trapezoidal Tear StrengthASTM D 45330.17 KN38 lbs
CBR Ejection ForceASTM D 62411.4 KN314 lbs

UV Resistance
(% retained after 500 hours)

ASTM D 435570%70%
ROLL DIMENSIONS
Roll Width3.8 M13.2 ft
Roll Length100 M328.9 ft
Roll Weight52 KGS115 lbs

NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.


Description:

Split Film Yarn Woven Geotextile are made by weaving flat strands created by first slitting plastic sheet. Woven split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These geotextiles aid in construction over soft or weak soils by providing separation and stabilization.

Features:

Color: Black
Temperature Range: 0°C ~ +150°C
Durability: The characteristics of synthetic fiber is not easy to be denatured .It can keep its original features.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient .

Applications:

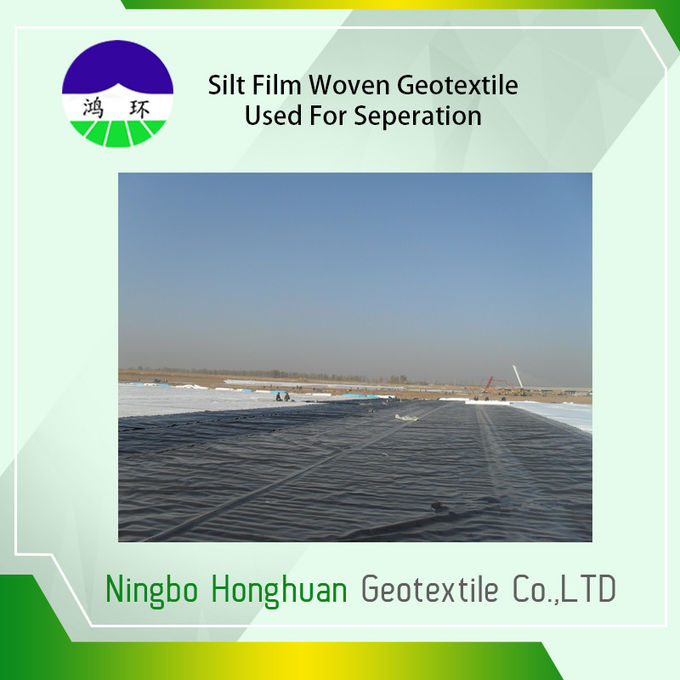

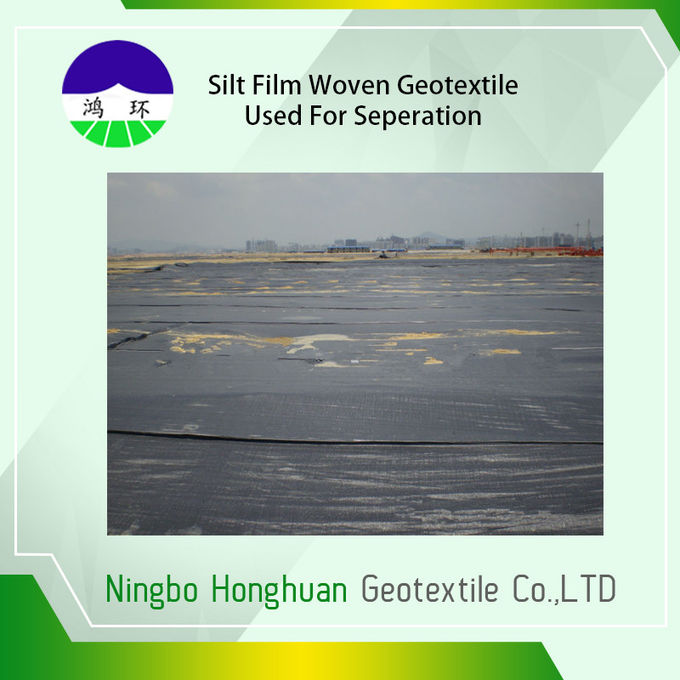

Separation
Acts as a separator between two layers of soil in road construction and rail works. Our fabric is having strength, high puncture resistance and appropriate elongation features required for road and rail works.

Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric 0Circle Loom Polypropylene Woven Geotextile Fabric , Recycled Geotextile Filter Fabric 1
