Ningbo Honghuan Geotextile Co.,LTD
Home ProductsWoven Geotextile Fabric

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization

China Ningbo Honghuan Geotextile Co.,LTD certification
China Ningbo Honghuan Geotextile Co.,LTD certification
Ivan, danna and Amy , thank you guys for your good service. The woven geotextile seems very good ,thank you!

—— Joy

This was my first time to do business with Chinese people and every thing gone very well ,thank you all guys. quality goods and wonderful service.

—— Piotr

I'm Online Chat Now

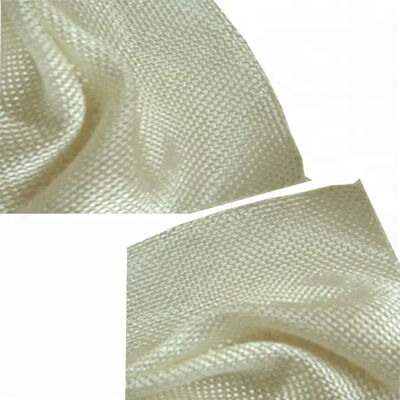

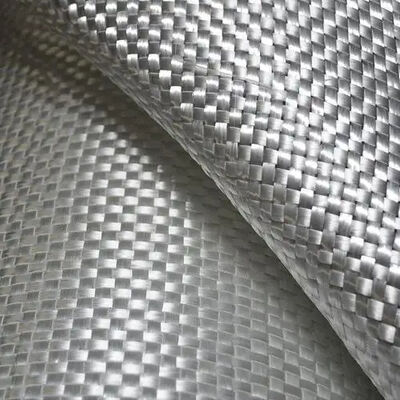

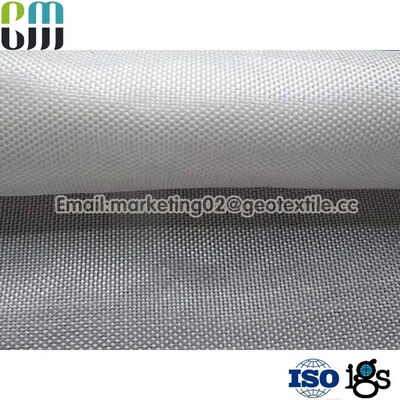

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization
PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization

Large Image :  PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chengmei
Model Number: WF
Payment & Shipping Terms:
Minimum Order Quantity: 15000
Detailed Product Description
Warranty: 1 Year Material: PP, PP&PET
Feature: Anti-Aging After-sale Service: Online Technical Support
Length: 200m, 50-200m Project Solution Capability: Total Solution For Projects
Application: Construction Design Style: Industrial
Geotextile Type: Woven Geotextiles Type: Filament Yarn
Color: White Function: Filtration ,separation,drainage, Reinforcement, Stabilization
Sample: Free Certificate: ISO
MOQ: 20GP Wideth: 3.8 0r 4.2m
Highlight:

PP woven geotextile fabric for road construction

,

high tensile strength geotextile fabric

,

permeable geotextile barrier for slope stabilization

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 0

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 2

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 4

Mechanical Properties

Test

Method

Minimum Average

(English)

Minimum Average

(Metric)

Tensile Strength ASTM D-4595 3600 x 3600 Ibs/ft 53 x 49 kN/m
Tensile Strength at 5% ASTM D-4595 1500 x 1560 Ibs/ft  22 x 22.8 kN/m
Permittivity ASTM D-4491 0.52 sec-1 0.52 sec-1
Water Flow Rate   40 gpm/sf 1630 l/min/sm
Apparent Opening Size(AOS) ASTM D-4751 30 US Std.Sieve 0.6 mm
UV Resistance
(% retained after 500 hours)
ASTM D-4355 80 % 80 %



PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 6



PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 8

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 10

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 12

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 14

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 16

PP Woven Multifilament Geotextile Fabric High Tensile Strength Permeable Barrier for Road Construction Slope Stabilization 18

A: Are you manufacturer?

B: Yes,ae are factory.



A: What's the leading time?

B: Usually 15-25 days.



A: What's your payment term?

B: T/T,L/C,WestUnion and some other convinient payment way.



A: How can I visit your factory?

B: Fly to Ningbo Airpot,We'll send driver to pick you up.
