Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement

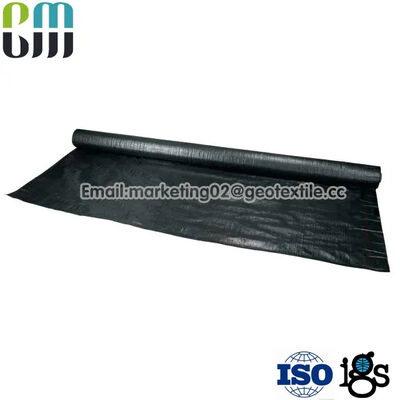

Large Image : Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Chengmei

Payment & Shipping Terms:

Minimum Order Quantity:	1000

Contact Now

Detailed Product Description

Material:	PP, PP PET	Feature:	Anti-Aging
After-sale Service:	Other	Length:	200m, 50-200m
Project Solution Capability:	Others	Application:	Agricultural Garden Farm
Design Style:	Modern	Geotextile Type:	Woven Geotextiles
Color:	Black	Width:	Accept Customer-made
Usage:	Road Railway Construction	Function:	Filtration ,separation,drainage, Reinforcement, Stabilization
Sample:	Free	Certificate:	ISO9001:2008
MOQ:	20GP	Thickness:	1-5mm
Highlight:	PP woven geotextile fabric for road construction , woven geotextile fabric for pavement reinforcement , highway stabilization barrier geotextile fabric

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 0

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 2

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 4

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.

Mechanical Properties	Test Method	Minimum Average(English)	Minimum Average(Metric)
Wide Width Tensile Strength (MD x CD)	ASTM D-4595	4800*4800 Ibs/ft	70*70 kN/m
Grab Tensile Strength (MD x CD)	ASTM D-4632	Ibs	kN
Grab Tensile Elongation	ASTM D-4632	25%	25%
Trapezoidal Tear	ASTM D-4533	180*180 Ibs	801*801 N
CBR Puncture	ASTM D-6241	2000 Ibs	8896 N
Apparent Opening Size(AOS)	ASTM D-4751	30 US Std.Sieve	0.6 mm
Permittivity	ASTM D-4491	0.4 sec-1	0.4 sec-1
Water Flow Rate	ASTM D-4491	30 gal/min/ft²	1222 L/min/m²
UV Resistance (% retained after 500 hours)	ASTM D-4355	80%	80%

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 8

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 10

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 12

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 14

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 16

Road Construction PP Woven Geotextile Fabric for Reinforcement and Stabalization Barrier for Highway Pavement Reinforcement 18

A: Are you manufacturer?

B: Yes,ae are factory.

A: What's the leading time?

B: Usually 15-25 days.

A: What's your payment term?

B: T/T,L/C,WestUnion and some other convinient payment way.

A: How can I visit your factory?

B: Fly to Ningbo Airpot,We'll send driver to pick you up.
