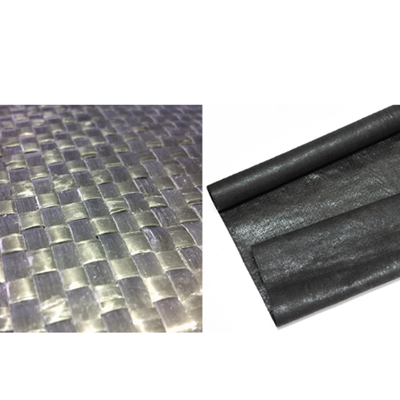

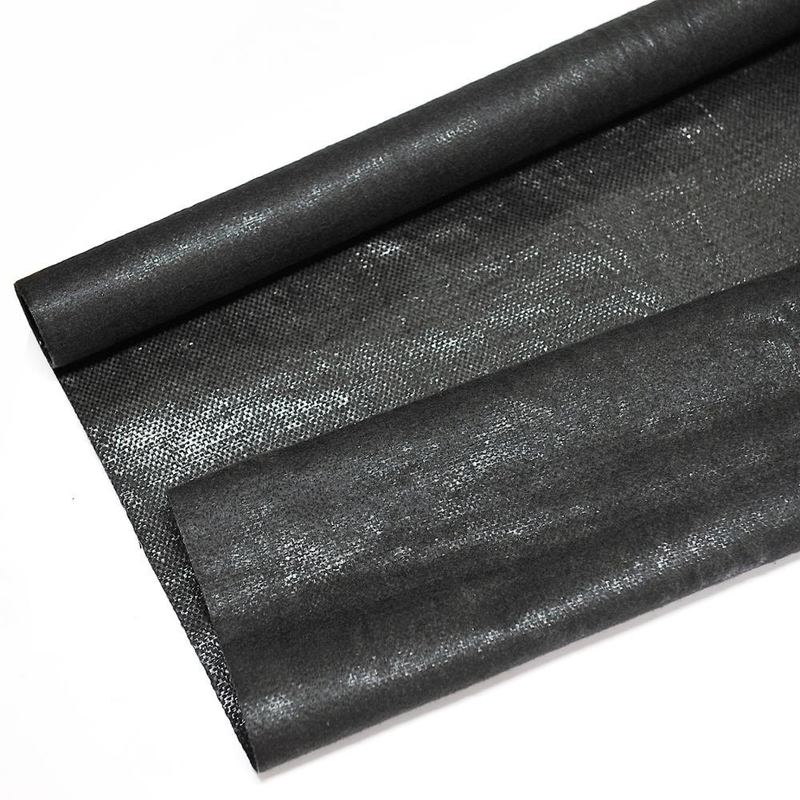

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Large Image : Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Product Details:

Place of Origin:	China
Brand Name:	Honghuan
Model Number:	SWG

Payment & Shipping Terms:

Minimum Order Quantity:	50000

Contact Now

Detailed Product Description

Material:	Polypropylene	Unit Mass:	390gsm
Roll Width:	5.85m	Roll Length:	100m
Mass Per Unit Area:	200g/m2	Tensile Strength MD:	40kN/m
Tensile Strength CD:	28kN/m	Elongation MD:	25%
Elongation CD:	25%	Apparent Opening Size:	0.41mm
Water Flow Rate:	160l/min/m2	Trapezoidal Tear Strength:	0.34kN
CBR Ejection Force:	3.20kN	UV Resistance:	70% Retained After 500 Hours
Roll Weight:	117Kg
Highlight:	polypropylene woven geotextile fabric 390gsm , black woven geotextile for environmental engineering , heavy duty woven geotextile fabric

High Quality Hot Selling Polypropylene PET/PP Filament Woven Geotextile 200g M2

Product Attributes

Attribute	Value
Geotextile Type	Woven Geotextiles
Type	Geotextiles
Material	Polypropylene
Color	Black
Unit mass	390gsm
Packing With	Film / Woven Fabric
Application	Environmental Engineering
Roll Width	5.85m
Roll Length	100m
Function	Chemical Resistance
Feature	Eco-Friendly

Product Description

Woven Geotextile SWG® is made by weaving flat strands created by first slitting a plastic sheet. Woven split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These geotextiles aid in construction over soft or weak soils by providing separation and stabilization.

Product Specifications

PROPERTIES	TEST METHOD	UNIT	SWG12	SWG20	SWG24	SWG34	SWG40	SWG52	SWG58
Mass Per Unit Area	ASTM D 5261	g/m2	120	200	240	340	400	520	580
Tensile strength, MD	ASTM D 4632	kN/m	20	40	50	80	80	140	160
Tensile strength, CD	ASTM D 4632	kN/m	15	28	35	56	80	100	110
Elongation, MD	ASTM D 4632	%	25	25	25	25	25	25	25
Elongation, CD	ASTM D 4632	%	25	25	25	25	25	25	25
Apparent Opening Size	ASTM D 4751	mm	0.41	0.41	0.41	0.41	0.41	0.41	0.41
Permittivity	ASTM D 4491	sec-1	NA	NA	NA	NA	NA	NA	NA
Water Flow Rate	ASTM D 4491	l/min/m2	160	160	160	160	160	160	160
Trapezoidal Tear Strength	ASTM D 4533	kN	0.20	0.34	0.41	0.60	0.72	0.96	1.10
CBR Ejection Force	ASTM D 6241	kN	1.60	3.20	4.00	6.00	7.50	10.50	12.00
UV Resistance (% retained after 500 hours)	ASTM D 4355	%	70	70	70	70	70	70	70
ROLL DIMENSIONS
Roll Width		m	5.85	5.85	5.85	5.85	5.85	5.85	5.85
Roll Length		m	100	100	100	100	100	100	100
Roll Weight		Kg	70	117	140	199	234	304	339

*The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
*Mass per unit area has a tolerance of ±10%.

This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.
