PP Woven Geotextile Geotube Geobag for Water Conservancy Projects

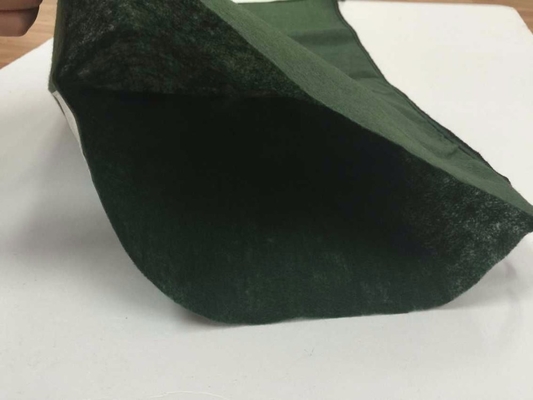

Large Image : PP Woven Geotextile Geotube Geobag for Water Conservancy Projects

Product Details:

Place of Origin:	China
Brand Name:	Honghuan
Model Number:	MWG&SWG

Payment & Shipping Terms:

Minimum Order Quantity:	100

Contact Now

Detailed Product Description

Geotextile Type:	Woven Geotextiles	Material:	PP
Tensile Strength MD:	38.5-105.1 KN/m	Tensile Strength CD:	35.9-96.3 KN/m
Elongation MD:	25%	Elongation CD:	25%
Tensile Strength 2% MD:	7-21 KN/m	Tensile Strength 2% CD:	8.6-25 KN/m
Tensile Strength 5% MD:	17.7-52.5 KN/m	Tensile Strength 5% CD:	19.8-53 KN/m
Factory Seam Strength:	18.4-52.5 KN/m	Apparent Opening Size:	0.43-0.6 Mm
Permittivity:	0.04-0.9 Sec-1	Water Flow Rate:	611-2037 L/min/m2
UV Resistance:	70-80% Retained After 500 Hours
Highlight:	PP woven geotextile for water conservancy , geotube geobag for erosion control , woven geotextile fabric for drainage

Low Price Eco-Friendly Popular Polyester Geotube Geobag Non Woven

Product Attributes

Attribute	Value
Geotextile Type	Woven Geotextiles
Type	Geotextiles
Material	PP
Color	Requirement
Application	Water Conservancy Railway Highway
Feature	Eco-Friendly
MOQ	100pcs
Keyword	polyester geotube geobag
Function	Reinforcement Separation Filtration
Usage	Reinforcement Filtration Separation
Product name	geotube geobag non woven

Product Description

Woven Geotextile MWG®
Mono-filament Woven Geotextile, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.

Product Specifications

PROPERTIES	TEST METHOD	UNIT	MWG270	MWG370	MWG570	MWG665	MWG770
Tensile Strength, MD	ASTM D 4595	kN/m	38.5	52.5	70	70	105.1
Tensile Strength, CD	ASTM D 4595	kN/m	35.9	47.3	70	96.3	84
Elongation, MD	ASTM D 4595	%	25	25	25	25	25
Elongation, CD	ASTM D 4595	%	25	25	25	25	25
Tensile Strength at 2%, MD	ASTM D 4595	kN/m	7	11	14	17.5	21
Tensile Strength at 2%, CD	ASTM D 4595	kN/m	8.6	12.3	19.3	25	22.8
Tensile Strength at 5%, MD	ASTM D 4595	kN/m	17.7	21.9	35	35	52.5
Tensile Strength at 5%, CD	ASTM D 4595	kN/m	19.8	22.8	39.4	53	47.1
Factory Seam Strength	ASTM D 4884	kN/m	18.4	25.1	37.5	52.5	43.8
Apparent Opening Size	ASTM D 4751	mm	0.6	0.43	0.6	0.43	0.6
Permittivity	ASTM D 4491	sec-1	0.7	0.9	0.4	0.26	0.04
Water Flow Rate	ASTM D 4491	l/min/m2	2037	1630	1222	815	611
UV Resistance (% retained after 500 hours)	ASTM D 4355	%	80	80	80	70	80

*The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
*Mass per unit area has a tolerance of ±10%.
This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.
