370G Woven Geotextile Fabric for Dewatering and Geotube Applications

Large Image : 370G Woven Geotextile Fabric for Dewatering and Geotube Applications

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	HONGHUAN
Model Number:	MGW370

Payment & Shipping Terms:

Minimum Order Quantity:	10000

Contact Now

Detailed Product Description

Geotextile Type:	Woven Geotextiles	Material:	Polypropylene
Color:	White Black	Mass Per Unit Area:	120-580 G/m2
Tensile Strength MD:	20-160 KN/m	Tensile Strength CD:	15-110 KN/m
Elongation MD:	25%	Elongation CD:	25%
Apparent Opening Size:	0.41 Mm	Water Flow Rate:	160 L/min/m2
Trapezoidal Tear Strength:	0.20-1.10 KN	CBR Ejection Force:	1.60-12.00 KN
UV Resistance:	70% Retained After 500 Hours	Roll Width:	5.85 M
Roll Length:	100 M
Highlight:	woven geotextile fabric for dewatering , 370g geotextile fabric , geotextile fabric for geotube

Dewatering 370G Woven Geotextile Fabric for Geotube

Product Attributes

Attribute	Value
Geotextile Type	Woven Geotextiles
Type	Geotextiles
Material	Polypropylene
Color	White Black
Product Name	Geotextile Fabric
Application	Building Construction
Keyword	PP Woven Geo Textile
Usage	Ecological Slope Protection System
Function	Slope Protection
Feature	Eco-Friendly
Use	Strengthening Isolation Re-filtration

Product Description

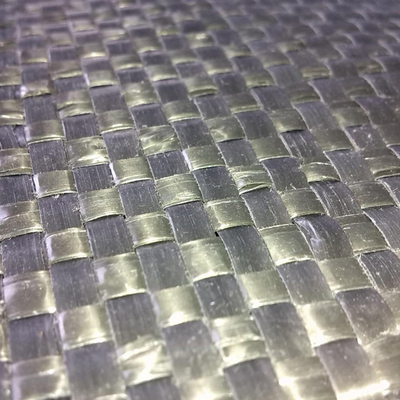

Woven Geotextile SWG® is made by weaving flat strands created by first slitting a plastic sheet. Woven split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These geotextiles aid in construction over soft or weak soils by providing separation and stabilization.

Product Specifications

PROPERTIES	TEST METHOD	UNIT	SWG12	SWG20	SWG24	SWG34	SWG40	SWG52	SWG58
Mass Per Unit Area	ASTM D 5261	g/m2	120	200	240	340	400	520	580
Tensile strength, MD	ASTM D 4632	kN/m	20	40	50	80	80	140	160
Tensile strength, CD	ASTM D 4632	kN/m	15	28	35	56	80	100	110
Elongation, MD	ASTM D 4632	%	25	25	25	25	25	25	25
Elongation, CD	ASTM D 4632	%	25	25	25	25	25	25	25
Apparent Opening Size	ASTM D 4751	mm	0.41	0.41	0.41	0.41	0.41	0.41	0.41
Permittivity	ASTM D 4491	sec-1	NA	NA	NA	NA	NA	NA	NA
Water Flow Rate	ASTM D 4491	l/min/m2	160	160	160	160	160	160	160
Trapezoidal Tear Strength	ASTM D 4533	kN	0.20	0.34	0.41	0.60	0.72	0.96	1.10
CBR Ejection Force	ASTM D 6241	kN	1.60	3.20	4.00	6.00	7.50	10.50	12.00
UV Resistance (% retained after 500 hours)	ASTM D 4355	%	70	70	70	70	70	70	70
ROLL DIMENSIONS
Roll Width		m	5.85	5.85	5.85	5.85	5.85	5.85	5.85
Roll Length		m	100	100	100	100	100	100	100
Roll Weight		Kg	70	117	140	199	234	304	339

*The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
*Mass per unit area has a tolerance of ±10%.
This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.

Applications

Weed block for landscaped garden beds
Permeable liners for planters (stops soil erosion)
Weed control under wooden decking
Geotextile for separating aggregate/soils under walkway blocks or bricks
Assists in preventing paving from settling unevenly
Landscape fabric prevents soil erosion

Which payment do you accept?

For your convenience, our payment can be L/C, TT, Westunion, PayPal

Are you willing to provide the samples?

We are glad to provide the samples to you if we have the identical or similar samples in our warehouse.

May I get a cheaper price?

A favorable discount will be given if there is a large quantity you need.

Do the customized designs be accepted?

Yes, we welcome customized designs.

How to contact with us?

Choose one product and leave a message there, or see the contact way, there are the contacted detail information.
