Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications

Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications

Large Image :  Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chengmei
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Detailed Product Description
Geotextile Type: Woven Geotextiles Color: Black
Width: Accept Customer-made Material: PP PET
Usage: Road Railway Construction Function: Filtration ,separation,drainage, Reinforcement, Stabilization
Sample: Free Certificate: ISO9001:2008
MOQ: 20GP Length: 50-200m
Thickness: 1-5mm
Highlight:

woven geotextile fabric for construction

,

industrial geotextile fabric

,

geotechnical woven geotextile material

Specification

Geotextile

Geotextiles are permeable fabrics, made from either polypropylene or polyester. Geotextiles are used in the civil construction, especially in roads and fills to improve soil characteristics. The functions of geotextiles are divided into five categories: Filtration ,separation,drainage, protection and reinforcement, stabilization.
Geotextile fabrics come in three basic forms: woven geotextiles, non-woven geotextiles (needle punched), or heat bonded geotextiles (resembling ironed felt).

Mass/Unit
ASTM D-5261
8.8 oz/yd²
298 g/m²
Wide Width Tensile Strength (MD x CD)
ASTM D-4595
270 x 225 Ibs/in
47.3 x 39.4 kN/m
Grab Tensile Strength (MD x CD)
ASTM D-4632
425 x 350 Ibs
1891 x 1558 N
Grab Tensile Elongation
ASTM D-4632
21 x 21 %
21 x 21 %
Trapezoidal Tear
ASTM D-4533
145 x 125 Ibs
645 x 556 N
CBR Puncture
ASTM D-6241
1340 Ibs
5963 N
Apparent Opening Size(AOS)
ASTM D-4751
40 US Std.Sieve
0.43 mm
Permittivity
ASTM D-4491
0.96 sec-1
0.96 sec-1
Water Flow Rate
ASTM D-4491
70 gal/min/ft²
2852 L/min/m²
UV Resistance (% retained after 500 hours)
ASTM D-4355
90%
90%


Function

The functions of geotextiles are divided into five categories. Regardless of type of construction, the geotextile performs at least one of these functions:
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 0
Hot product
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 2
Application
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 4

Environmental protection project

The geotextile is resistant to acid and alkali corrosion, has strong flexibility and strong tensile strength. It is used together with geomembrane for leachate inverting project of landfill, and can also be used for garbage separation, slit fence,dewatering of coastal mud, etc. The effect is very good

Road & Railway Stabalization

Geosynthetics can be used to increase the bearing capacity of soil and reduce and level uneven settlement. Geosynthetics are commonly used for the reinforcement of roads and railway lines to help increase their lifespan.

Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 6
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 8

Hydraulic construction

Anti-scouring material for slope protection, is used as a filter layer in the back drainage system such as retaining wall and bank wall to meet the requirements of anti-seepage, isolation, reinforcement and reinforcement in the construction of water conservancy projects.

Agriculture & Landscape

Retards weed growth with a barrier between mulch and soil
Allows water, air, herbicides, fertilizer and insecticide flow into the soil.

Landscape weed and erosion control,Patio and stone/sidewalk underlayment

Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 10
Certifications
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 12

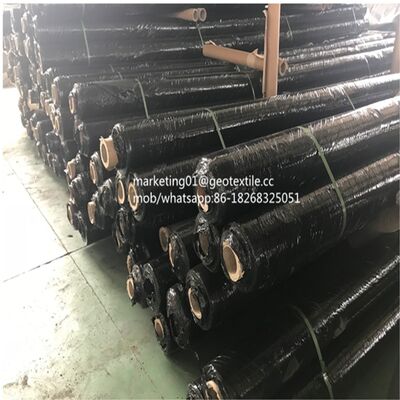

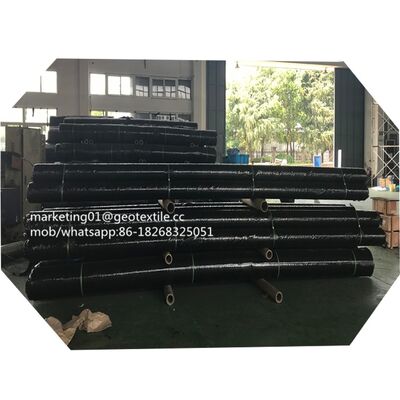

Package & Transport
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 14

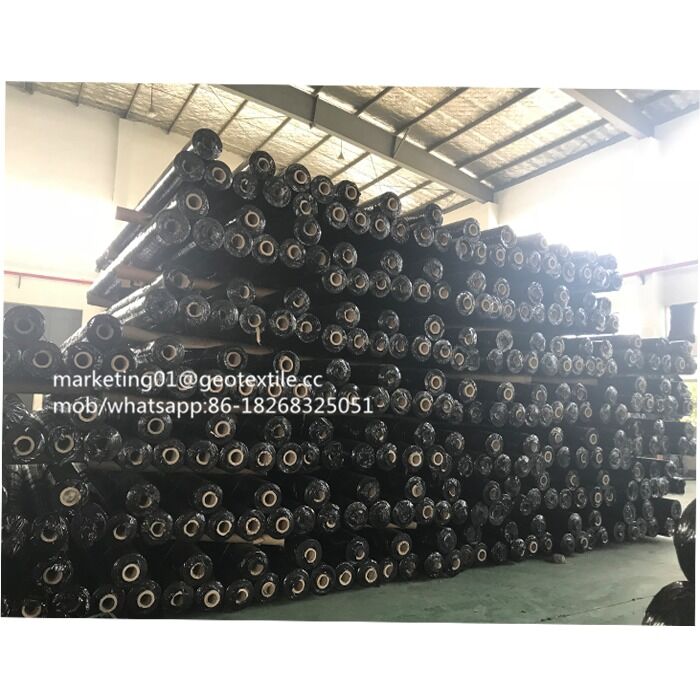

Company Information
Geoechnical Woven Geotextile Fabrics Are Used for Industrial and Construction Applications 16

Zhejiang Chengmei Import & Export Co., Ltd. is a manufacturer and exporter of high-strength woven geotextiles, located in Binjiang area, Hangzhou city. Our factory is located in Ningbo and is one of the top manufacturers of high strength woven geotextiles in China. We have more than 100 workers, 15000 square meters plant, 10 sets of circular loom equipment , 3 sets of flat loom equipment. And total of 12 production lines can meet the customers' demand for products. The factory has professional inspection equipment and development team, we focusing on the geotextile raw materials and finished products's production, processing and development , and providing innovative and reliable geotextile products and services for customers .

FAQ

Q1. What's your payment item?

A: For your convenience,our payment can be L/C,TT,West union,paypal.

Q2. Can you  provide the samples ?

A:We are glad to provide the samples to you if we have the identical or similar samples in our warehouse, but the sample charge and shipping cost should be paid by customers

Q3. Good quality and cheaper price,is possible?

A: We can assure our quality, also a favorable discount will be given if there is a large quantity

Q4. Can you accept customised design?

A: Yes.We can produce the products according to your request. It will be helpful if you can offer samples to us

Q5. How to contral quality?

A: we have professional test teamwork and professional test machine ,every product will choose sample to test.
