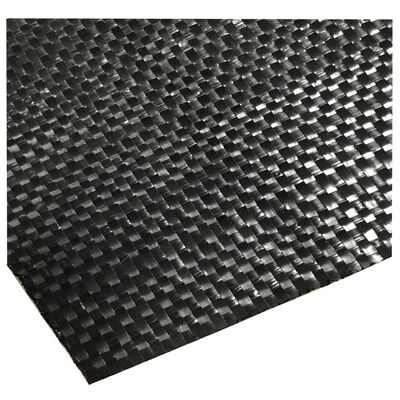

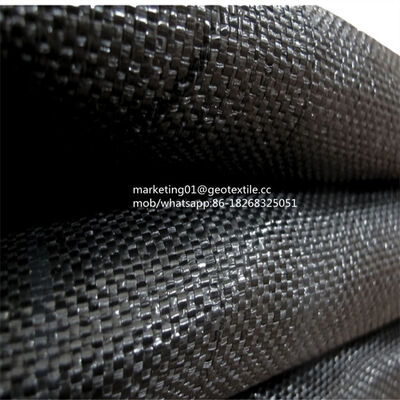

Geotextile Filter Layer and Geotextile Fabric for Roads

Geotextile Filter Layer and Geotextile Fabric for Roads
Geotextile Filter Layer and Geotextile Fabric for Roads Geotextile Filter Layer and Geotextile Fabric for Roads

Large Image :  Geotextile Filter Layer and Geotextile Fabric for Roads

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chengmei
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Contact Now
Detailed Product Description
Geotextile Type: Woven Geotextiles Color: Black
Width: Accept Customer-made Material: PP PET
Usage: Civil Enviroment Function: Filtration ,separation,drainage, Reinforcement, Stabilization
Sample: Free Certificate: ISO9001:2008
MOQ: 20GP Length: 50-200m
Thickness: 1-5mm
Highlight:

woven geotextile fabric for roads

,

geotextile filter layer material

,

durable geotextile road fabric

Geotextile Filter Layer and Geotextile Fabric for Roads 0

Geotextile Filter Layer and Geotextile Fabric for Roads 2

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.

Geotextile Filter Layer and Geotextile Fabric for Roads 4

Mechanical Properties

Test

Method

Minimum Average

(English)

Minimum Average

(Metric)

Mass/Unit ASTM D-52616.2 oz/yd²210 g/m²
Wide Width Tensile Strength
(MD x CD)		ASTM D-45952700 x 1740 Ibs/ft39.5 x 25.5 kN/m
Grab Tensile Strength
(MD x CD)		ASTM D-4632370 x 250 Ibs1647 x 1113 N
Grab Tensile ElongationASTM D-463215 x 15 %15 x 15 %
Trapezoidal TearASTM D-4533100 x 60 Ibs445 x 270 N
CBR PunctureASTM D-6241950 Ibs4228 N
Apparent Opening Size(AOS)ASTM D-475170 US Std.Sieve0.212 mm
PermittivityASTM D-44910.28 sec-10.28 sec-1
Water Flow RateASTM D-449118 gal/min/ft²733 L/min/m²
UV Resistance
(% retained after 500 hours)		ASTM D-435590 %90 %

Geotextile Filter Layer and Geotextile Fabric for Roads 6



Geotextile Filter Layer and Geotextile Fabric for Roads 8



Geotextile Filter Layer and Geotextile Fabric for Roads 10

Geotextile Filter Layer and Geotextile Fabric for Roads 12

Geotextile Filter Layer and Geotextile Fabric for Roads 14

Geotextile Filter Layer and Geotextile Fabric for Roads 16

Geotextile Filter Layer and Geotextile Fabric for Roads 18

Geotextile Filter Layer and Geotextile Fabric for Roads 20

A: Are you manufacturer?

B: Yes,ae are factory.



A: What's the leading time?

B: Usually 15-25 days.



A: What's your payment term?

B: T/T,L/C,WestUnion and some other convinient payment way.



A: How can I visit your factory?

B: Fly to Ningbo Airpot,We'll send driver to pick you up.
