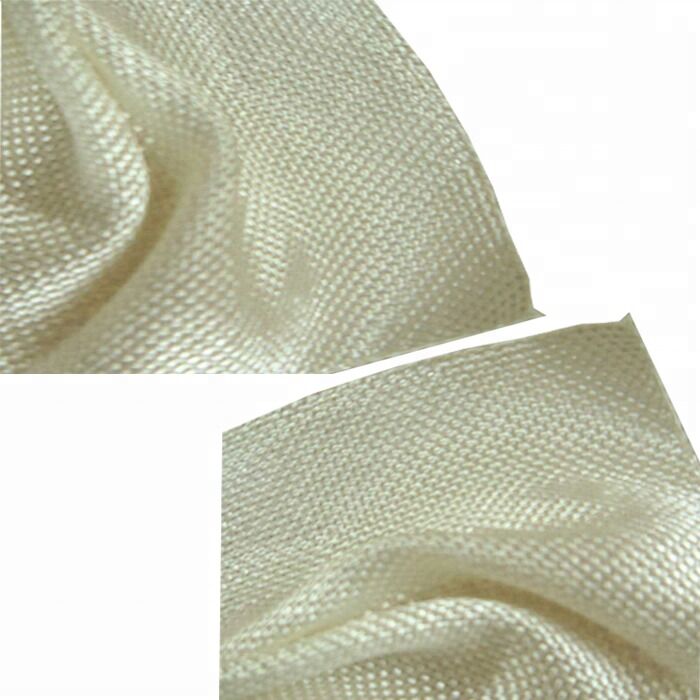

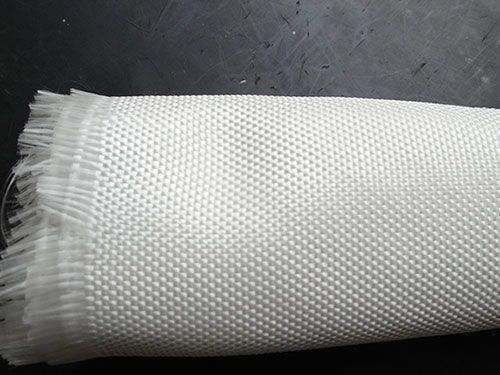

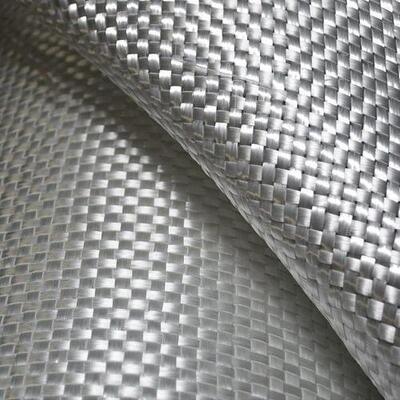

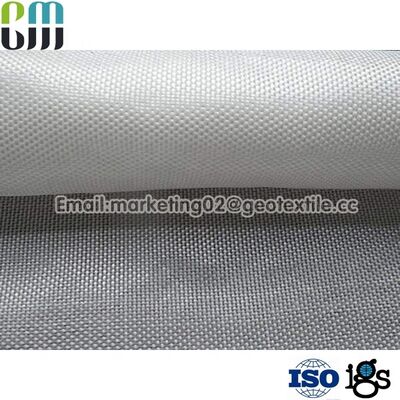

PP Woven Multifilament Geotextile Fabric

PP Woven Multifilament Geotextile Fabric
PP Woven Multifilament Geotextile Fabric PP Woven Multifilament Geotextile Fabric PP Woven Multifilament Geotextile Fabric PP Woven Multifilament Geotextile Fabric

Large Image :  PP Woven Multifilament Geotextile Fabric

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chengmei
Model Number: WF
Payment & Shipping Terms:
Minimum Order Quantity: 15000
Detailed Product Description
Warranty: 1 Year After-sale Service: Online Technical Support
Project Solution Capability: Total Solution For Projects Application: Construction
Geotextile Type: Woven Geotextiles Type: Filament Yarn
Color: White Material: PP&PET
Function: Filtration ,separation,drainage, Reinforcement, Stabilization Sample: Free
Certificate: ISO MOQ: 20GP
Length: 50-200m Wideth: 3.8 0r 4.2m
Highlight:

PP woven geotextile fabric

,

multifilament geotextile fabric

,

woven geotextile fabric with warranty

PP Woven Multifilament Geotextile Fabric 0

PP Woven Multifilament Geotextile Fabric 2

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.

PP Woven Multifilament Geotextile Fabric 4

Mechanical Properties

Test

Method

Minimum Average

(English)

Minimum Average

(Metric)

Tensile StrengthASTM D-45953600 x 3600 Ibs/ft53 x 49 kN/m
Tensile Strength at 5%ASTM D-45951500 x 1560 Ibs/ft 22 x 22.8 kN/m
PermittivityASTM D-44910.52 sec-10.52 sec-1
Water Flow Rate 40 gpm/sf1630 l/min/sm
Apparent Opening Size(AOS)ASTM D-475130 US Std.Sieve0.6 mm
UV Resistance
(% retained after 500 hours)
ASTM D-435580 %80 %



PP Woven Multifilament Geotextile Fabric 6



PP Woven Multifilament Geotextile Fabric 8

PP Woven Multifilament Geotextile Fabric 10

PP Woven Multifilament Geotextile Fabric 12

PP Woven Multifilament Geotextile Fabric 14

PP Woven Multifilament Geotextile Fabric 16

PP Woven Multifilament Geotextile Fabric 18

A: Are you manufacturer?

B: Yes,ae are factory.



A: What's the leading time?

B: Usually 15-25 days.



A: What's your payment term?

B: T/T,L/C,WestUnion and some other convinient payment way.



A: How can I visit your factory?

B: Fly to Ningbo Airpot,We'll send driver to pick you up.
