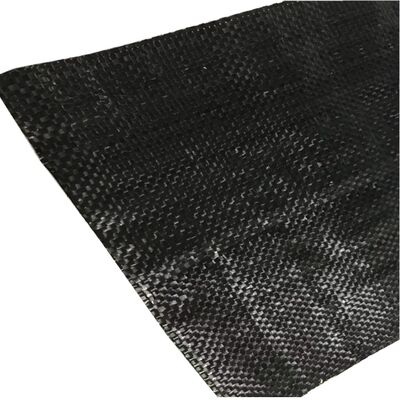

8oz Woven Geotextile Under Gravel for Road Reinforcement

8oz Woven Geotextile Under Gravel for Road Reinforcement
8oz Woven Geotextile Under Gravel for Road Reinforcement 8oz Woven Geotextile Under Gravel for Road Reinforcement 8oz Woven Geotextile Under Gravel for Road Reinforcement 8oz Woven Geotextile Under Gravel for Road Reinforcement 8oz Woven Geotextile Under Gravel for Road Reinforcement 8oz Woven Geotextile Under Gravel for Road Reinforcement

Large Image :  8oz Woven Geotextile Under Gravel for Road Reinforcement

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chengmei
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Detailed Product Description
Geotextile Type: Woven Geotextiles Color: Black
Width: Accept Customer-made Material: PP PET
Usage: Civil Engineering Function: Filtration ,separation,drainage, Reinforcement, Stabilization
Sample: Free Certificate: ISO9001:2008
MOQ: 20GP Length: 50-200m
Thickness: 0.4-5mm
Highlight:

woven geotextile fabric for road reinforcement

,

8oz geotextile under gravel

,

woven geotextile road stabilization fabric

8oz Woven Geotextile Under Gravel for Road Reinforcement 0

8oz Woven Geotextile Under Gravel for Road Reinforcement 2

Geotextiles include a variety of synthetic polymer materials that are specially fabricated to be used in geotechnical, geoenvironmental, hydraulic and transportation engineering applications. It is convenient to identify the primary function of a geotextile as being one of: separation, filtration, drainage, reinforcement, fluid/gas containment, or erosion control. In some cases the geosynthetic may serve dual functions.

8oz Woven Geotextile Under Gravel for Road Reinforcement 4

Mechanical Properties

Test

Method

Minimum Average

(English)

Minimum Average

(Metric)

Mass/Unit ASTM D-52618 oz/yd²270 g/m²
Wide Width Tensile Strength
(MD x CD)
ASTM D-45952760 x 2700 Ibs/ft40.5 x 40 kN/m
Grab Tensile Strength
(MD x CD)
ASTM D-4632400 x 335 Ibs1780 x 1491 N
Grab Tensile ElongationASTM D-463220 x 15 %20 x 15 %
Trapezoidal TearASTM D-4533145 x 125 Ibs645 x 556 N
CBR PunctureASTM D-62411250 Ibs5563 N
Apparent Opening Size(AOS)ASTM D-475130 US Std.Sieve0.6 mm
PermittivityASTM D-44911.5 sec-11.5 sec-1
Water Flow RateASTM D-4491115 gal/min/ft²4685 L/min/m²
UV Resistance
(% retained after 500 hours)
ASTM D-435590 %90 %



8oz Woven Geotextile Under Gravel for Road Reinforcement 6

8oz Woven Geotextile Under Gravel for Road Reinforcement 8

8oz Woven Geotextile Under Gravel for Road Reinforcement 10

8oz Woven Geotextile Under Gravel for Road Reinforcement 12

8oz Woven Geotextile Under Gravel for Road Reinforcement 14

8oz Woven Geotextile Under Gravel for Road Reinforcement 16

8oz Woven Geotextile Under Gravel for Road Reinforcement 18

A: Are you manufacturer?

B: Yes,we are factory.



A: What's the leading time?

B: Usually 15-25 days.



A: What's your payment term?

B: T/T,L/C,WestUnion and some other convinient payment way.



A: How can I visit your factory?

B: Fly to Ningbo Airpot,We'll send driver to pick you up.
